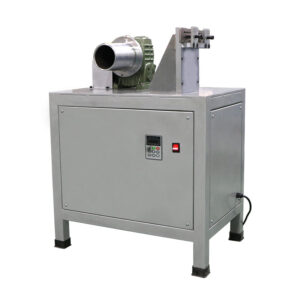

Juyi 12-Eye Gold Wire Drawing Machine – High-Efficiency Multi-Wire Drawing Solution
The Juyi 12-Eye Gold Wire Drawing Machine is a high-performance wire processing solution designed to reduce the diameter of metal wires with exceptional precision and efficiency. Capable of narrowing wires from 0.2mm to 1.5mm, this machine is widely used in jewelry manufacturing(gold, silver, copper, K-gold, and alloys) as well as industrial fields such as telecommunications, automotive, construction, and alloy production. The finished wires are suitable for necklaces, earrings, bracelets, fine metal components, and industrial wire products.
Difference Between a 12-Eye Wire Drawing Machine and a Single-Eye Wire Drawing Machine
| Aspect | 12-Eye Wire Drawing Machine | Single-Eye Wire Drawing Machine |
|---|---|---|
| Design | Equipped with 12 consecutive drawing dies (eyes) for multi-stage continuous reduction | Equipped with 1 die (eye), reducing diameter in a single step |
| Starting Wire Diameter | Up to 1.5mm | Up to 5mm or more (depending on model) |
| Finished Wire Diameter | Down to 0.2mm in one continuous process | Requires multiple passes and machines to reach fine sizes like 0.2mm |
| Wire Reduction per Step | Each eye reduces diameter by 15%–30%, enabling gradual precision reduction | Reduces diameter by 10%–20% per pass, often requiring intermediate annealing |
| Efficiency & Output | High efficiency, precision, and consistency; suitable for mass production | Lower efficiency; better for small-batch or flexible production |
| Best Applications | Producing ultra-fine wires for jewelry, electronics, telecommunications, and precision industries | Processing thicker wires, initial reduction, or versatile small-scale tasks |
Features & Advantages of the Juyi 12-Eye Wire Drawing Machine
• Dual-Head Design
• Allows two sides to work simultaneously, enabling different wires to be drawn at the same time.
• Improves production efficiency, making it suitable for large-scale continuous production.
• High-Speed Production
• Each side achieves a drawing speed of 15 meters per minute, ensuring consistent output.
• Automatic Winding & Servo Precision
• Equipped with a self-winding device and servo-driven wire laying system for neat collection and reduced labor.
• Prevents material friction losses during winding.
• Cooling & Safety Systems
• Spray cooling system keeps the wire at optimal temperatures, minimizing wire loss.
• Automatic shutdown for oil shortage and material shortage, ensuring safe and stable operation.
• Intelligent Control
• PLC-based control system with user-friendly interface.
• Even operators with minimal experience can quickly learn to use the machine.
• Versatile Metal Compatibility
• Processes a wide range of metals: gold, silver, copper, K-gold, stainless steel, and other alloys.
• Energy-Saving Design
• Optimized internal structure reduces energy consumption and supports sustainable operation.
• Customizable Options
• Adjustable wire diameter, pulling speed, and die configuration, enabling one machine to handle multiple production requirements.
Applications
• Jewelry Industry: Gold, silver, and copper wire for necklaces, bracelets, earrings, chains, and other ornaments.
• Electronics & Telecommunications: Fine copper wires, signal wires, and conductive materials.
• Automotive Industry: Alloy wires for precision components and electrical systems.
• Construction & Industrial Manufacturing: Stainless steel and alloy wires for reinforcement, mesh, and mechanical parts.
Summary – Why Choose a 12-Eye Wire Drawing Machine?
Compared with single-eye machines, the Juyi 12-Eye Wire Drawing Machine delivers:
• One-pass reduction from 1.5mm to 0.2mm without repeated processing.
• Higher efficiency and precision, making it ideal for mass production.
• Advanced automation with safety, cooling, and winding systems.
• Versatility to handle both precious metals and industrial alloys.
For manufacturers seeking high-output, precision wire processing, the 12-eye wire drawing machine is the optimal choice, while single-eye machines remain practical for initial reductions and small-scale custom production.
