Advanced Blue and Infrared Laser Technology for High-Reflectivity Metal Welding

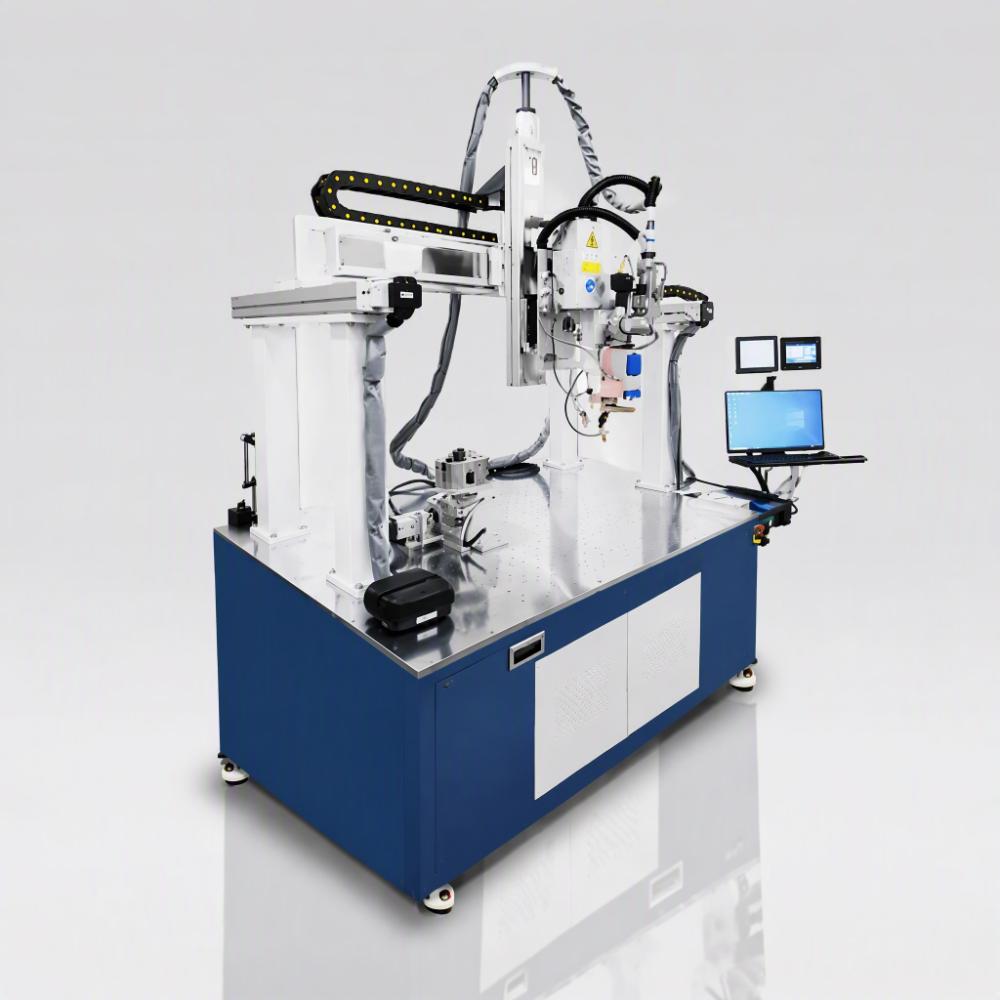

The JUYI Blue-Red Hybrid Laser Welding Machine combines blue laser and infrared laser technologies to provide an advanced welding solution for copper, aluminum, brass, and other highly reflective metals.
The system integrates a 455 ± 10 nm blue laser with 400–600W output power and a 1070 ± 10 nm infrared laser system supporting up to 4000–6000W power. By combining the different absorption characteristics of blue and infrared wavelengths, the system provides improved energy coupling, stable melting, and efficient heat input for challenging metal welding applications.
Compared with conventional infrared fiber laser welding, the blue-red hybrid approach is particularly advantageous for materials with high laser reflectivity, making it an ideal solution for copper welding, battery manufacturing, busbar welding, electrical components, EV motors, and new energy applications.
How Does Blue-Red Hybrid Laser Welding Work?
The system combines two different laser wavelengths that interact with metal in different ways.
Blue Laser — 455 ± 10 nm
The shorter-wavelength blue laser provides significantly improved absorption characteristics for highly reflective metals such as copper.
Its main role is to improve laser-to-material energy coupling and help establish a more stable welding process.
Infrared Laser — 1070 ± 10 nm
The high-power infrared laser provides the primary energy required for efficient melting and deep penetration welding.
The infrared laser system supports a maximum allowable power range of 4000–6000W, providing substantial energy capacity for high-power industrial welding applications.
Hybrid Welding Process
Blue Laser → Improved Absorption → Infrared Laser → High-Power Melting → Stable Molten Pool → High-Quality Weld
The coordinated use of blue and infrared laser energy allows the system to address some of the limitations associated with conventional infrared laser welding of highly reflective metals.
Key Advantages
1. Excellent for Copper Welding
Copper has high thermal conductivity and high reflectivity to near-infrared laser light, making conventional laser welding more challenging in certain applications.
The 455 nm blue laser provides better absorption characteristics for copper, allowing laser energy to be coupled into the material more effectively.
This makes the JUYI Blue-Red Hybrid Laser Welding Machine particularly suitable for:
- Copper busbars
- Copper terminals
- Copper wires
- Copper connectors
- Copper sheets
- Electrical contacts
- Battery components
2. Blue Laser with 400–600W Output
The system is equipped with a 455 ± 10 nm blue laser with an output power range of 400–600W.
The blue laser is designed to enhance energy absorption when welding high-reflectivity materials, helping improve process stability and welding efficiency.
3. High-Power Infrared Laser
The infrared laser operates at 1070 ± 10 nm and supports a maximum allowable power range of 4000–6000W.
The high-power infrared laser provides the energy required for high-speed melting and deep penetration, making the system suitable for demanding industrial welding applications.
4. Improved Energy Coupling
The combination of blue and infrared wavelengths allows the laser energy to interact with the workpiece more effectively.
For highly reflective metals, improved energy coupling can help achieve:
- More stable laser absorption
- More consistent melting
- Better molten pool control
- Improved welding repeatability
- Higher process efficiency
5. Stable Molten Pool
One of the key challenges in high-power copper welding is maintaining a stable molten pool.
The blue laser helps improve initial energy absorption, while the infrared laser provides high-power energy for continuous melting.
The combined energy distribution can help create a more controlled and stable welding process.
6. High Welding Efficiency
The combination of 400–600W blue laser power and a 4000–6000W infrared laser power capacity provides a high-energy welding platform for industrial production.
The system is suitable for applications requiring:
- High welding speed
- High penetration
- High production efficiency
- Stable continuous welding
- Repetitive industrial processing
Actual welding performance depends on material, thickness, joint configuration, laser parameters, and process conditions.
Blue-Red Hybrid Laser vs. Conventional Fiber Laser
| Feature | Conventional Infrared Fiber Laser | JUYI Blue-Red Hybrid Laser |
|---|---|---|
| Main Laser | Infrared | Blue + Infrared |
| Blue Wavelength | — | 455 ± 10 nm |
| Blue Laser Power | — | 400–600W |
| Infrared Wavelength | Approx. 1070 nm | 1070 ± 10 nm |
| Infrared Power Capacity | Depends on configuration | 4000–6000W |
| Copper Welding | Suitable with optimized parameters | Particularly suitable |
| High-Reflectivity Metals | More challenging | Improved energy coupling |
| Energy Absorption | Conventional infrared absorption | Enhanced by blue laser |
| Molten Pool Control | Process dependent | Improved for reflective materials |
| Typical Applications | Steel, stainless steel, general fabrication | Copper, aluminum, battery, electrical and new energy |
The primary advantage of the blue-red hybrid system is improved energy coupling for highly reflective metals, rather than simply higher laser power.
Suitable Materials
The JUYI Blue-Red Hybrid Laser Welding Machine is particularly suitable for conductive and reflective metals, including:
Copper
A key application for blue-red hybrid laser welding.
Suitable for:
- Copper busbars
- Copper terminals
- Copper connectors
- Copper wires
- Copper sheets
- Motor windings
Aluminum
Suitable for battery components, automotive parts, electrical components, and lightweight metal assemblies.
Brass
Suitable for electrical connectors, terminals, precision components, and hardware.
Gold and Silver
The technology can also be considered for selected precious-metal welding applications where high reflectivity and thermal characteristics require specialized laser processing.
Stainless Steel and Carbon Steel
The system can also weld conventional industrial metals, although a standard continuous wave fiber laser may already be sufficient for many steel welding applications.
Typical Applications
Copper Busbar Welding
The high absorption characteristics of the blue laser make this system particularly suitable for copper busbar welding.
Applications include:
- EV busbars
- Battery busbars
- Power distribution components
- Electrical connectors
- High-current conductive components
Battery Manufacturing
The system can be used for conductive metal components in battery manufacturing.
Potential applications include:
- Battery tabs
- Copper terminals
- Aluminum tabs
- Busbars
- Battery connectors
- Battery housings
- Power connections
EV Motor and Electrical Components
Copper is widely used in electric motors and electrical power systems.
Potential applications include:
- Motor windings
- Copper hairpins
- Electrical terminals
- Busbars
- Power connectors
- Motor components
Power Electronics
The machine is suitable for precision welding of conductive components used in power electronics.
Applications include:
- Power modules
- Electrical terminals
- Connectors
- Busbars
- Conductive components
- Heat-transfer components
Cooling System
The blue-red hybrid laser system uses water cooling for thermal management.
Water cooling is suitable for high-power laser applications and helps maintain stable operating conditions during extended production.
The cooling configuration can be customized according to the laser source, operating power, duty cycle, and application requirements.
Fiber Connection
The system uses a QBH fiber connector, providing a standard industrial interface for laser energy transmission.
This allows the laser system to be integrated with appropriate laser welding heads and automated welding equipment according to the customer’s application.
Suitable Industries
The JUYI Blue-Red Hybrid Laser Welding Machine is particularly suitable for industries where copper, aluminum, and other high-reflectivity metals are widely used.
- Battery Manufacturing
- New Energy
- Electric Vehicles
- Automotive
- Electrical & Electronics
- Power Electronics
- Copper Products
- Motor Manufacturing
- Energy Storage
- Precision Metal Manufacturing
- Industrial Components
Technical Specifications
| Parameter | Specification |
|---|---|
| Blue Laser Wavelength | 455 ± 10 nm |
| Blue Laser Power | 400–600W |
| Infrared Laser Wavelength | 1070 ± 10 nm |
| Maximum Allowable Infrared Power | 4000–6000W |
| Fiber Connector | QBH |
| Cooling Method | Water Cooling |
Why Choose JUYI Blue-Red Hybrid Laser Welding Machine?
- 455 nm blue laser technology
- 400–600W blue laser power
- 1070 nm infrared laser
- 4000–6000W infrared power capacity
- Improved absorption for copper
- Designed for high-reflectivity metals
- More efficient energy coupling
- Stable molten pool control
- High-power deep penetration capability
- Water-cooled design
- QBH fiber connection
- Suitable for automated production
- Ideal for copper, aluminum, and electrical applications
Customized Blue-Red Laser Welding Solutions
Different materials and products require different combinations of laser power, beam configuration, welding speed, and process parameters.
JUYI can develop customized blue-red hybrid laser welding solutions based on:
- Material
- Material thickness
- Product dimensions
- Joint configuration
- Required penetration
- Welding speed
- Production volume
- Automation requirements
The system can be configured for standalone welding machines, automated welding stations, robotic welding systems, or integrated production lines.
Get a Customized Laser Welding Solution
Send JUYI your material, thickness, product drawing or sample, welding position, and production requirements. Our engineering team can evaluate your application and recommend a suitable blue-red hybrid laser welding configuration.
