High-Speed Automatic Cutting for Precious Metals, Specialty Metals and Advanced Materials

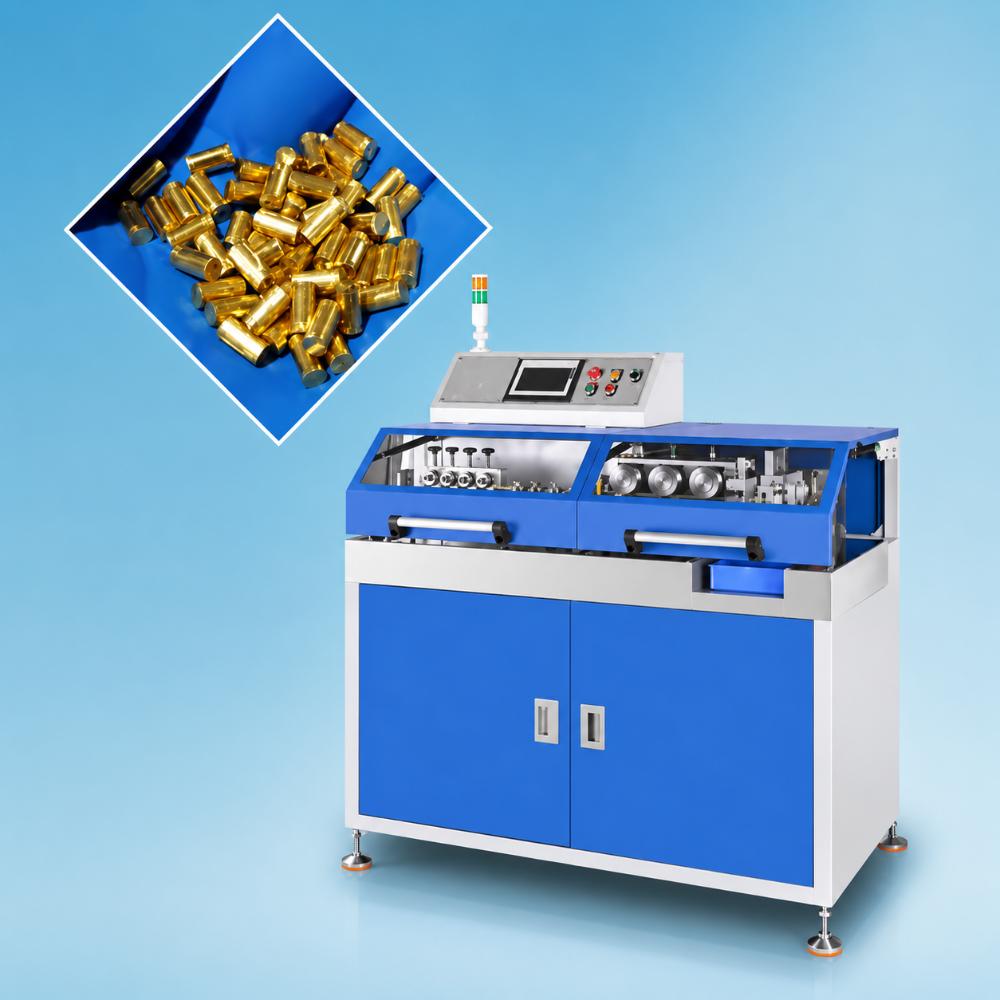

The JUYI Servo Precision Automatic Metal Cutting Machine is a high-precision automatic cutting solution designed for processing precious metals, specialty metals, and advanced metal materials. With a servo-driven cutting system, automatic feeding, precision positioning, and an integrated straightening device, the machine can continuously cut metal wires and rods into uniform lengths with a cutting tolerance of ±0.02 mm.

Designed for applications where cutting accuracy, consistent piece weight, clean cutting surfaces, and high production efficiency are critical, this machine is particularly suitable for precious metal processing, evaporation materials, solder materials, semiconductor materials, research laboratories, and new material production.

With a maximum production speed of 220 pieces/min, it provides an efficient solution for both small-batch precision production and continuous industrial manufacturing.

Key Advantages

1. High Cutting Precision – ±0.02 mm

The servo-controlled positioning and cutting system provides highly accurate length control, achieving a cutting tolerance of up to ±0.02 mm. This helps ensure consistent dimensions and weight across every cut piece, which is especially important for precious metal and high-value material applications.

2. Clean and Uniform Cutting

The optimized cutting mechanism produces smooth, clean cutting surfaces while maintaining consistent piece length. This helps reduce material waste and minimizes the need for secondary processing.

3. High-Speed Automatic Production

The machine can achieve a maximum cutting speed of 220 pieces/min, significantly improving production efficiency compared with manual or conventional cutting methods.

4. Automatic Feeding

An automatic feeding system continuously delivers the material into the cutting mechanism, reducing manual intervention and improving production consistency.

5. Integrated Straightening Device

The built-in wire straightening system helps correct material bending before cutting, ensuring that the material enters the cutting area in a stable and straight condition. This is particularly useful when processing metal wires that may have deformation from coils or previous processing.

6. Intelligent Servo Control

The servo-driven system provides accurate positioning and stable movement during feeding and cutting. Operators can easily configure production parameters through the PLC + touchscreen control system, making operation simple and intuitive.

7. Flexible Cutting Length

The machine supports two cutting modes:

• Fixed-Length Cutting: 3–50 mm
• Non-Fixed / Programmable Cutting: 3–3000 mm

This allows the same machine to handle short precision pieces as well as longer metal sections for different production requirements.

Suitable Metal Materials

The JUYI Servo Precision Automatic Metal Cutting Machine is designed for a wide range of precious metals, non-ferrous metals, refractory metals, and specialty metal alloys.

Precious Metals

• Gold (Au)
• Silver (Ag)
• Platinum (Pt)
• Palladium (Pd)
• Rhodium (Rh)

Non-Ferrous and Specialty Metals

• Copper (Cu)
• Aluminum (Al)
• Nickel (Ni)
• Tantalum (Ta)
• Niobium (Nb)

Other Materials

• Precious metal alloys
• Copper alloys
• Aluminum alloys
• Nickel alloys
• Other specialty metal materials

The machine is suitable for metal wire and rod materials with a typical diameter range of 2–6 mm, subject to the specific material properties and production requirements.

Applications

The machine is particularly suitable for applications requiring precisely cut metal pieces with consistent dimensions and weight.

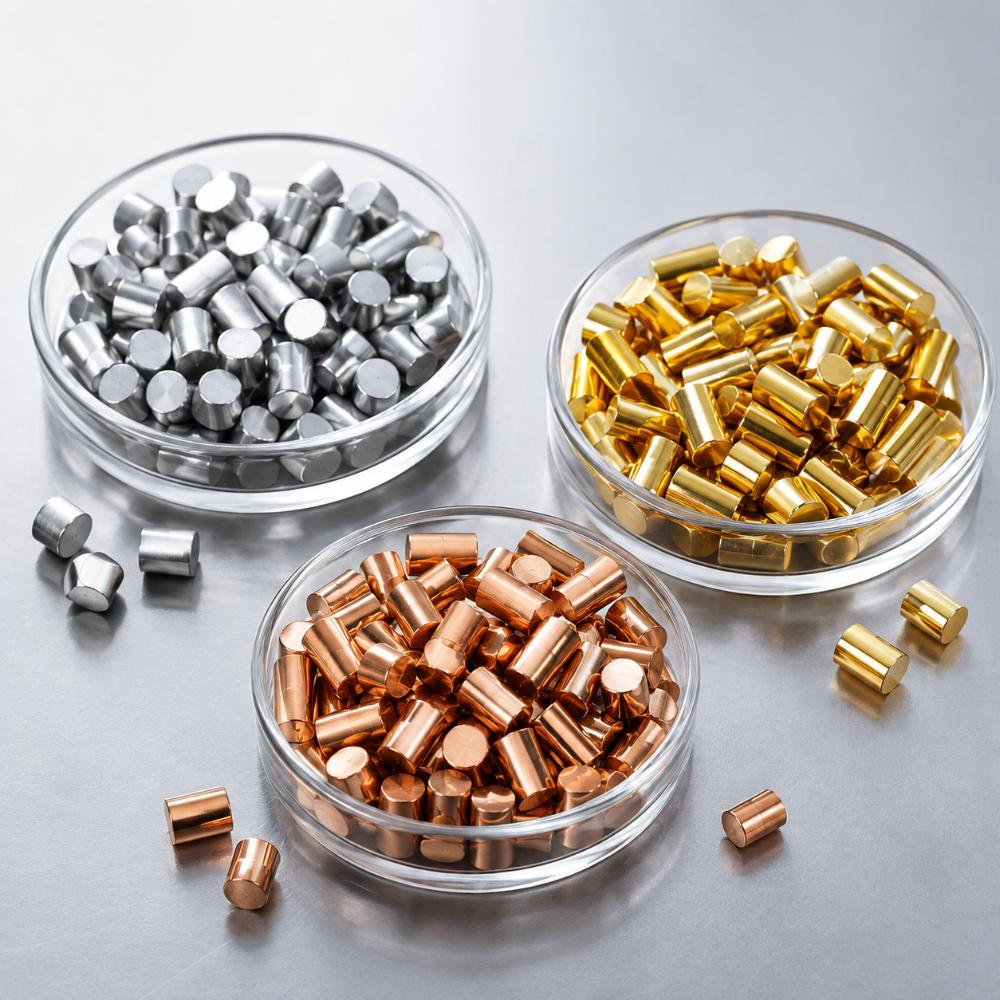

Evaporation Materials

Used for precision cutting of metal evaporation materials and target-related materials used in thin-film coating and vacuum deposition processes.

Solder Materials

Suitable for producing uniform-length solder pieces and other metal joining materials where consistent dimensions and material quantity are required.

Precious Metal Processing

Ideal for cutting gold, silver, platinum, palladium, rhodium, and their alloys into accurately controlled lengths for subsequent melting, casting, forming, or other processing operations.

New Material Research

The high positioning accuracy and flexible cutting-length control make the machine suitable for universities, research institutes, laboratories, and new material development projects.

Semiconductor Industry

Suitable for precision preparation of specialty metal materials used in semiconductor-related manufacturing and material research.

Laboratory and R&D Applications

The programmable cutting system allows researchers to prepare small quantities of metal samples with consistent dimensions, making it suitable for experimental production and material testing.

Typical Industries

The JUYI Servo Precision Automatic Metal Cutting Machine can be applied across multiple industries, including:

• Precious Metal Manufacturing
• Jewelry Manufacturing
• Evaporation Material Manufacturing
• Solder Material Production
• Semiconductor Manufacturing
• New Material Manufacturing
• Metal Material Processing
• Universities & Research Institutes
• Scientific Research Laboratories
• Advanced Manufacturing
• Specialty Metal Processing

Cutting Modes

Fixed-Position Cutting: 3–50 mm

For high-volume production requiring the same cutting length, the machine can continuously cut material into precisely controlled short sections. This mode is ideal for applications requiring consistent piece size and weight.

Programmable Cutting: 3–3000 mm

For applications requiring different cutting lengths, the programmable mode provides greater flexibility. Operators can set the required cutting length through the PLC touchscreen according to production requirements.

Intelligent Control System

The machine is equipped with a PLC + touchscreen control system, providing an intuitive interface for setting and monitoring production parameters.

Operators can conveniently control:

• Cutting length
• Feeding parameters
• Production speed
• Cutting quantity
• Positioning settings
• Automatic operation

The intelligent control system reduces manual operation and helps improve production repeatability.

Technical Specifications

ParameterSpecificationMachine TypeServo Precision Automatic Metal Cutting MachineCutting Diameter2–6 mmPower4 kWVoltage220 VProduction Capacity50–220 pcs/minCutting Length Tolerance±0.02 mmFixed-Position Cutting Length3–50 mmNon-Fixed / Programmable Cutting Length3–3000 mmCutting MethodServo CuttingControl SystemPLC + TouchscreenAutomatic FeedingYesStraightening DeviceIntegratedMachine Weight380 kgMachine Dimensions1300 × 690 × 1440 mm

Actual production speed and cutting performance may vary depending on material type, hardness, diameter, alloy composition, and required cutting length.

Why Choose JUYI?

The JUYI Servo Precision Automatic Metal Cutting Machine combines precision cutting, automatic feeding, servo positioning, straightening, and intelligent control into one compact production system.

Compared with conventional manual or semi-automatic cutting processes, it provides:

Higher Precision
Cutting tolerance up to ±0.02 mm for highly consistent dimensions.

Higher Productivity
Up to 220 pieces/min for high-volume production.

More Consistent Material Weight
Uniform cutting lengths help achieve more consistent piece weight, which is particularly valuable when processing expensive precious metals.

Less Manual Labor
Automatic feeding and servo-controlled cutting reduce operator intervention.

Flexible Production
Supports cutting lengths from 3 mm to 3000 mm, covering a wide range of applications.

Better Material Utilization
Precise positioning and controlled cutting help reduce unnecessary material loss.

Precision Cutting for High-Value Metal Materials

For precious metals and specialty materials, cutting accuracy directly affects material consumption, product consistency, and production costs. The JUYI Servo Precision Automatic Metal Cutting Machine provides a reliable automated solution for manufacturers that require high precision, stable feeding, clean cutting, and consistent output.

From gold and silver to platinum, palladium, rhodium, tantalum, niobium, nickel, copper, aluminum, and their alloys, JUYI provides flexible cutting solutions for precious metal processing, advanced materials, semiconductor applications, research institutions, and specialized manufacturing.

JUYI — Precision Metal Processing Equipment for Advanced Manufacturing.
