What Is a 12-Die Wire Drawing Machine?

A 12-Die Wire Drawing Machine uses multiple drawing dies arranged in sequence. Instead of reducing the wire diameter through a single drawing operation, the material is progressively reduced through multiple drawing stages.

The basic process can be described as:

Raw Metal Wire → Pre-Reduction → 12-Die Continuous Drawing → Cooling & Lubrication → Fine Wire → Precision Winding

Each drawing die performs a controlled reduction of the wire cross-section. The multi-stage process distributes the total reduction across several dies, making it possible to produce finer wire with improved dimensional control and surface quality.

Compared with single-die or single-pass drawing equipment, a multi-die configuration can significantly reduce the need for repeated manual processing and intermediate handling when the material and target dimensions are suitable for continuous multi-stage drawing.

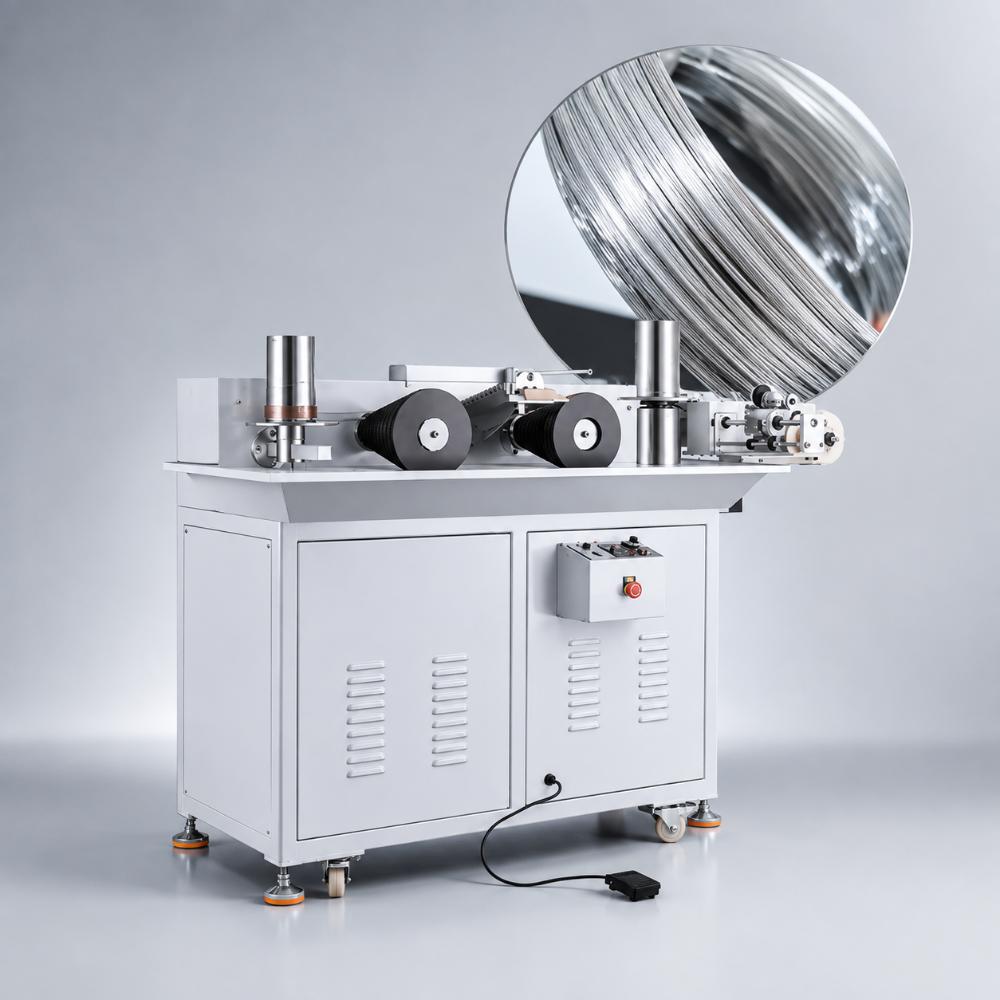

Key Features of the Juyi 12-Die Wire Drawing Machine

1. 12-Die Multi-Stage Drawing

The machine incorporates 12 consecutive drawing dies for progressive wire diameter reduction.

This configuration allows the total reduction to be distributed across multiple drawing stages rather than relying on a single heavy reduction.

Benefits include:

• Continuous multi-stage wire drawing
• More controlled diameter reduction
• Improved dimensional consistency
• Reduced manual handling
• Suitable for fine and precision wire production
• Higher production efficiency for continuous manufacturing

2. Precision Wire Diameter Reduction

The 12-die configuration is particularly suitable for applications requiring controlled reduction from relatively larger input wire sizes to fine finished wire.

Depending on the material, initial diameter, target diameter, mechanical properties and drawing die configuration, the machine can be customized for different reduction schedules.

Typical applications include the production of:

• Fine gold wire
• Silver wire
• Copper wire
• Fine electrical wire
• Jewelry wire
• Alloy wire
• Stainless steel wire
• Precision industrial wire
• Fine metal wire for electronic components

The final wire diameter and achievable reduction should be determined according to the specific material and production requirements.

3. Dual-Head / Multi-Wire Production Configuration

The Juyi system can be configured with a dual-head drawing structure, allowing two wire production lines to operate simultaneously.

This configuration can improve overall production capacity while maintaining independent control of each drawing line.

It is especially suitable for manufacturers producing:

• Jewelry wire
• Precious metal wire
• Fine copper wire
• Electronic wire
• Industrial alloy wire
• High-volume precision wire

4. Cooling and Lubrication System

During continuous wire drawing, friction between the wire and drawing dies generates heat.

The integrated cooling and lubrication system helps control:

• Drawing temperature
• Die temperature
• Wire surface friction
• Die wear
• Wire surface quality
• Production stability

Proper cooling and lubrication are particularly important when processing gold, silver, copper, stainless steel and alloy wires, especially during fine-diameter drawing.

5. Automatic Winding and Precision Wire Laying

After the drawing process, the finished wire is automatically collected through the winding system.

The precision wire-laying system helps arrange the wire evenly on the spool or coil, reducing:

• Wire overlap
• Tangling
• Uneven winding
• Manual handling
• Material damage during collection

This makes the machine suitable for continuous production environments where consistent wire winding is required.

6. PLC Control System

The machine uses a PLC-based control system to manage key operating functions.

Depending on the machine configuration, operators can control and monitor:

• Drawing speed
• Wire tension
• Drawing stages
• Cooling system
• Lubrication
• Winding
• Production status
• Safety protection

The intuitive control interface simplifies operation and allows production parameters to be adjusted according to different materials and wire sizes.

Metal Materials Suitable for Wire Drawing

The Juyi 12-Die Wire Drawing Machine can be configured for a broad range of metal materials.

Precious Metals

The machine is particularly suitable for fine wire production in the precious metal industry, including:

• Gold Wire
• Silver Wire
• Platinum Wire
• Palladium Wire
• K-Gold Wire
• White Gold Wire
• Rose Gold Wire
• Gold Alloys
• Silver Alloys
• Precious Metal Alloys

These wires can be further processed into jewelry components, chains, decorative wire, electronic components and other precision products.

Copper and Copper Alloys

Copper is one of the most widely processed materials in wire drawing.

Suitable materials may include:

• Pure Copper
• Oxygen-Free Copper
• Brass
• Bronze
• Phosphor Bronze
• Copper Alloys
• Nickel-Copper Alloys

Applications include electrical conductors, electronic components, communication cables, connectors, springs and industrial wire products.

Stainless Steel and Steel Wire

For industrial applications, the machine can also be configured for suitable grades of:

• Stainless Steel Wire
• Carbon Steel Wire
• Low-Carbon Steel Wire
• High-Carbon Steel Wire
• Spring Steel Wire
• Alloy Steel Wire

These materials are commonly used in springs, fasteners, mesh, cables, mechanical components and industrial products.

Aluminum and Aluminum Alloys

Depending on the required wire specification and drawing process, the machine can also be configured for:

• Aluminum Wire
• Aluminum Alloy Wire
• Conductive Aluminum Wire

These materials are widely used in electrical, automotive, construction and industrial applications.

Other Metal Alloys

The machine can also be considered for various specialty alloys, including:

• Nickel Alloys
• Nickel-Chromium Alloys
• Copper-Nickel Alloys
• Conductive Alloys
• Resistance Wire Alloys
• Specialty Metal Alloys

Material compatibility should be confirmed according to the specific alloy composition, hardness, elongation, tensile strength and target wire diameter.

Industries and Applications

The versatility of the 12-die configuration makes it suitable for a wide range of wire manufacturing applications.

1. Jewelry Manufacturing

The machine is widely applicable to precious metal wire production for:

• Gold Jewelry
• Silver Jewelry
• Platinum Jewelry
• K-Gold Jewelry
• Jewelry Chains
• Necklaces
• Bracelets
• Earrings
• Rings
• Jewelry Components
• Decorative Metal Wire

Fine wire can be further processed through bending, forming, twisting, chain making, soldering and other jewelry manufacturing processes.

2. Electronics and Electrical Industry

Fine copper and alloy wires can be used for:

• Electronic Components
• Electrical Conductors
• Connector Components
• Fine Copper Wire
• Signal Wire
• Conductive Wire
• Communication Components
• Precision Electronic Parts

3. Telecommunications

Fine metal wires are widely used in communication-related applications, including:

• Communication Cables
• Signal Transmission
• Conductive Components
• Data Communication Components
• Fine Copper Conductors

4. Automotive Industry

Precision-drawn wire can be used in:

• Automotive Electrical Systems
• Wiring Components
• Springs
• Connectors
• Sensor Components
• Motor Components
• Precision Metal Parts

5. Industrial Manufacturing

The machine can be used to manufacture wire for:

• Springs
• Fasteners
• Mesh
• Filters
• Screens
• Mechanical Components
• Welding Wire
• Industrial Components
• Precision Wire Products

6. Medical and Precision Components

Fine metal wire is also used in specialized applications such as:

• Medical Components
• Precision Springs
• Fine Stainless Steel Wire
• Precision Metal Components
• Small Mechanical Components

For medical applications, the material grade, cleanliness, dimensional tolerance and production process should be specifically validated.

7. Construction and Hardware

Suitable drawn wire can be used for:

• Metal Mesh
• Wire Products
• Fasteners
• Reinforcement Components
• Hardware Components
• Construction Wire
• Industrial Mesh

12-Die vs. Single-Die Wire Drawing

The actual performance and achievable wire diameter depend on the material, input diameter, target diameter, die configuration, reduction schedule, lubrication, cooling and machine setup.

Typical Wire Drawing Materials

The Juyi 12-Die Wire Drawing Machine can be considered for a wide range of metal wire materials:

Gold · Silver · Platinum · Palladium · K-Gold · White Gold · Rose Gold · Copper · Brass · Bronze · Phosphor Bronze · Aluminum · Stainless Steel · Carbon Steel · Spring Steel · Nickel Alloys · Copper Alloys · Silver Alloys · Gold Alloys · Specialty Metal Alloys

Why Choose the Juyi 12-Die Wire Drawing Machine?

Multi-Stage Continuous Drawing

12 drawing dies distribute the reduction across multiple stages for controlled and continuous wire processing.

High Production Efficiency

Continuous drawing and automatic winding reduce manual handling and improve production efficiency.

Suitable for Fine Wire Production

The multi-die configuration is well suited for producing fine and precision metal wires.

Wide Material Compatibility

Suitable configurations are available for precious metals, copper, stainless steel, aluminum and various metal alloys.

Integrated Cooling & Lubrication

Cooling and lubrication systems help control drawing temperature, friction and die wear.

Automatic Precision Winding

The finished wire can be automatically wound and precisely laid onto the take-up spool.

Flexible Production Configuration

Drawing dies, reduction schedules, wire diameter ranges and operating parameters can be configured according to different materials and production requirements.

Juyi – Precision Wire Drawing Solutions

From precious metal wire drawing to industrial fine wire production, Juyi provides complete wire processing solutions tailored to different materials, wire diameters and production requirements.

Our wire drawing solutions can be integrated with upstream and downstream equipment such as:

Wire Payoff → Straightening → Multi-Die Wire Drawing → Cooling & Lubrication → Fine Wire Processing → Precision Winding

Whether you are producing gold jewelry wire, silver wire, copper electrical wire, stainless steel precision wire, alloy wire or other fine metal wires, Juyi can develop a suitable wire drawing configuration based on your material, input diameter, target diameter, tolerance and production capacity.

Contact Juyi for a customized 12-Die Wire Drawing Solution for your metal wire production requirements.
