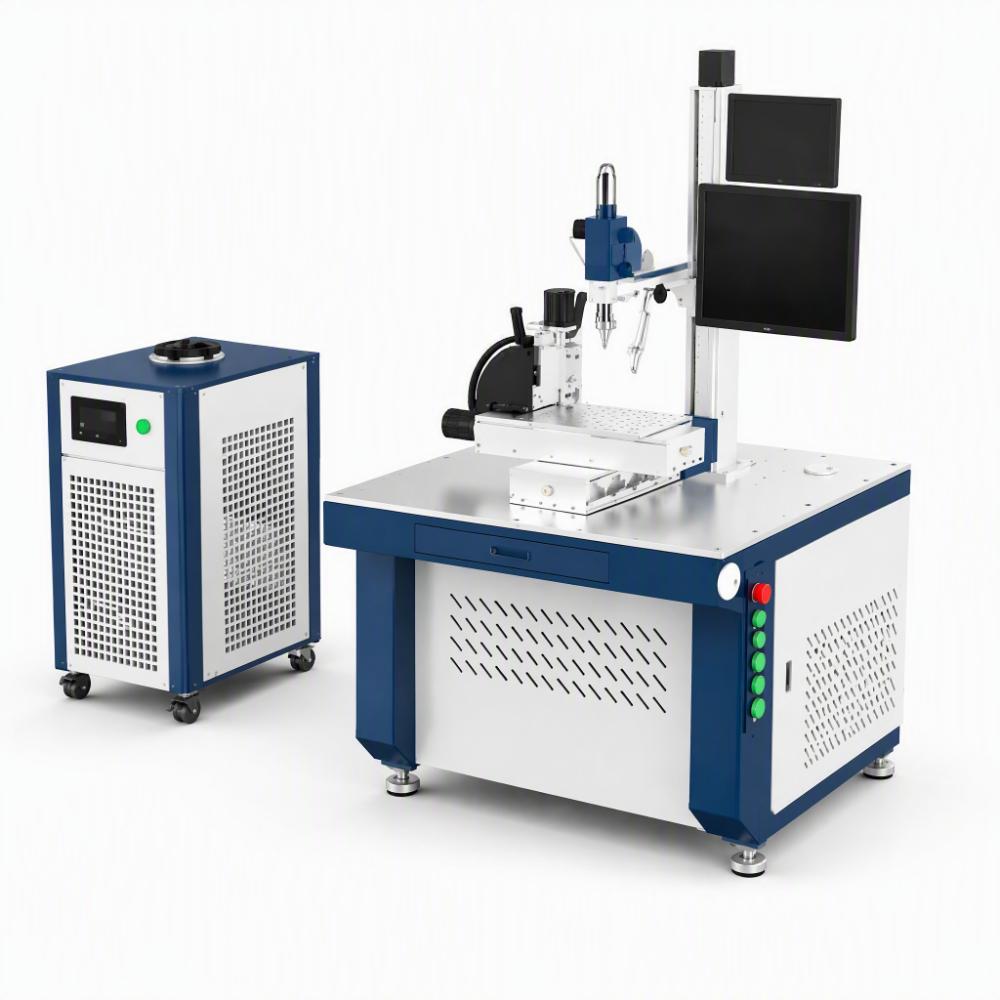

Continuous Wave Fiber Laser Welding Machine

High-Power Continuous Laser Welding for Industrial Metal Manufacturing

The JUYI Continuous Wave Fiber Laser Welding Machine is a high-performance laser welding solution designed for fast, stable, and efficient welding of metal components, sheets, tubes, frames, and industrial assemblies.

Using a high-quality continuous wave fiber laser source with a 1080 nm wavelength, the system provides stable continuous laser output and high beam quality for precise and efficient metal joining. Available in 500W, 800W, 1000W, and 1200W configurations, it can be selected according to different material thicknesses, welding speeds, and production requirements.

With a power adjustment range of 10–100%, water cooling, M² beam quality below 1.3, and long-term output stability, the machine is suitable for both standalone welding and automated industrial production.

How Does a Continuous Wave Fiber Laser Welding Machine Work?

A Continuous Wave (CW) fiber laser welding machine generates a stable laser beam that operates continuously during the welding process.

The laser source generates high-power laser energy, which is transmitted through an optical fiber to the welding head. The focusing optics concentrate the beam into a small area on the workpiece, producing a high energy density that rapidly melts the metal.

As the welding head moves along the joint, the molten metal forms a continuous weld pool and solidifies behind the laser beam to create a strong and consistent weld.

Welding Process

Fiber Laser Source → Fiber Transmission → Beam Focusing → Localized Melting → Continuous Welding → Rapid Solidification

The continuous output makes CW fiber laser welding particularly suitable for long weld seams, high-speed welding, and high-volume production.

Key Advantages

High Welding Speed

Continuous laser output provides a constant energy supply, allowing the welding head to move quickly along the joint.

This makes the system suitable for:

• Sheet metal welding
• Tube and profile welding
• Frame welding
• Long weld seams
• High-volume production

High Beam Quality

The system provides beam quality of M² < 1.3, allowing the laser beam to be focused into a small and concentrated spot.

High beam quality contributes to:

• High energy density
• Precise welding
• Stable weld formation
• Narrow heat-affected zones
• Improved welding consistency

Stable Laser Output

The laser power can be adjusted from 10% to 100%, while power stability is specified at ±2% under the rated operating conditions.

This helps maintain consistent energy delivery and repeatable welding quality during production.

Efficient Heat Input

The concentrated laser beam delivers energy directly to the welding area, reducing unnecessary heat transfer to surrounding material.

This can help minimize:

• Thermal deformation
• Heat-affected zones
• Material distortion
• Post-welding finishing

Long-Term Industrial Operation

The laser system is designed for long operating periods, with the specification indicating power stability of ±2% after more than 100 hours for the 500W model and more than 1100 hours for the higher-power configurations.

This makes the system suitable for continuous industrial production.

Flexible Power Configuration

The series is available in four power levels:

• CT-500: 500W ±15W
• CT-800: 800W ±20W
• CT-1000: 1000W ±20W
• CT-1200: 1200W ±25W

This range allows manufacturers to select a suitable laser power according to material, thickness, welding speed, and production requirements.

High-Efficiency Water-Cooled System

All listed models use water cooling to maintain stable operating temperatures during high-power laser welding.

Water cooling provides effective thermal management for continuous industrial operation and helps maintain consistent laser performance during extended production cycles.

The system is designed for an operating temperature range of 0°C to 40°C.

Continuous Wave Laser Welding Applications

The JUYI CW Fiber Laser Welding Machine is suitable for a wide range of continuous and high-speed metal welding applications.

Sheet Metal Welding

Suitable for:

• Stainless steel sheets
• Carbon steel sheets
• Aluminum sheets
• Metal cabinets
• Equipment housings
• Enclosures
• Panels

Tube and Profile Welding

The continuous laser beam is particularly suitable for long and continuous weld seams on:

• Metal tubes
• Pipes
• Square profiles
• Rectangular profiles
• Frames
• Structural components

Metal Frame Welding

High-speed laser welding can be used for metal frames and assemblies requiring consistent weld quality and production efficiency.

Typical applications include:

• Machine frames
• Industrial equipment
• Metal furniture
• Racks
• Brackets
• Structural assemblies

Industrial Component Welding

The machine can be used for welding a wide variety of fabricated metal components and assemblies where high production efficiency and repeatability are required.

Suitable Materials

Depending on laser power, material thickness, joint design, and welding parameters, the machine can process a wide range of metals, including:

• Stainless steel
• Carbon steel
• Mild steel
• Aluminum and aluminum alloys
• Copper and copper alloys
• Galvanized steel
• Nickel alloys
• Other compatible metal materials

Actual welding performance should be evaluated according to the specific material and application.

Suitable Industries

Automotive Manufacturing

For welding automotive components, brackets, frames, housings, structural parts, and electrical components.

Sheet Metal Fabrication

For cabinets, enclosures, panels, frames, equipment housings, and customized metal products.

Industrial Equipment

For machinery frames, industrial components, equipment structures, housings, and metal assemblies.

Electrical & Electronics

For electrical enclosures, terminals, connectors, housings, busbars, and other metal components.

Metal Furniture

For frames, supports, tubes, brackets, and other metal furniture components.

Hardware Manufacturing

For high-volume production of metal brackets, fittings, components, and customized hardware products.

New Energy

For battery-related metal components, electrical connections, housings, structural parts, and other new-energy applications.

Technical Specifications

The specifications above are based on the supplied product parameter sheet.

Why Choose JUYI Continuous Wave Fiber Laser Welding Machine?

• 500W to 1200W output power options
• Stable continuous laser output
• High beam quality with M² < 1.3
• 10–100% power adjustment
• Up to 10 kHz modulation frequency
• Water-cooled design for high-power operation
• Long-term operating stability
• Fast continuous welding
• High energy density
• Reduced thermal deformation
• Suitable for automated welding
• Multiple industrial applications

Automation and Production Line Integration

The CW fiber laser welding system can be integrated with automated equipment to improve production efficiency and consistency.

Depending on the application, JUYI can configure:

• Automatic feeding systems
• Precision welding fixtures
• CNC motion systems
• Rotary welding systems
• Robotic welding systems
• Automatic positioning
• Vision-assisted positioning
• Automatic loading and unloading
• Production-line integration

This allows the laser welding machine to be used as either a standalone production unit or part of a fully automated manufacturing line.

Customized Laser Welding Solutions

Every welding application has different requirements. Material type, thickness, product geometry, welding position, required speed, and production volume all affect the appropriate laser configuration.

JUYI can provide customized continuous wave fiber laser welding solutions based on your application, including laser power selection, welding heads, fixtures, motion systems, automation, and production-line integration.

Send us your material, product drawing, thickness, welding requirements, and expected production volume. Our engineering team can recommend a suitable CW fiber laser welding solution for your application.
