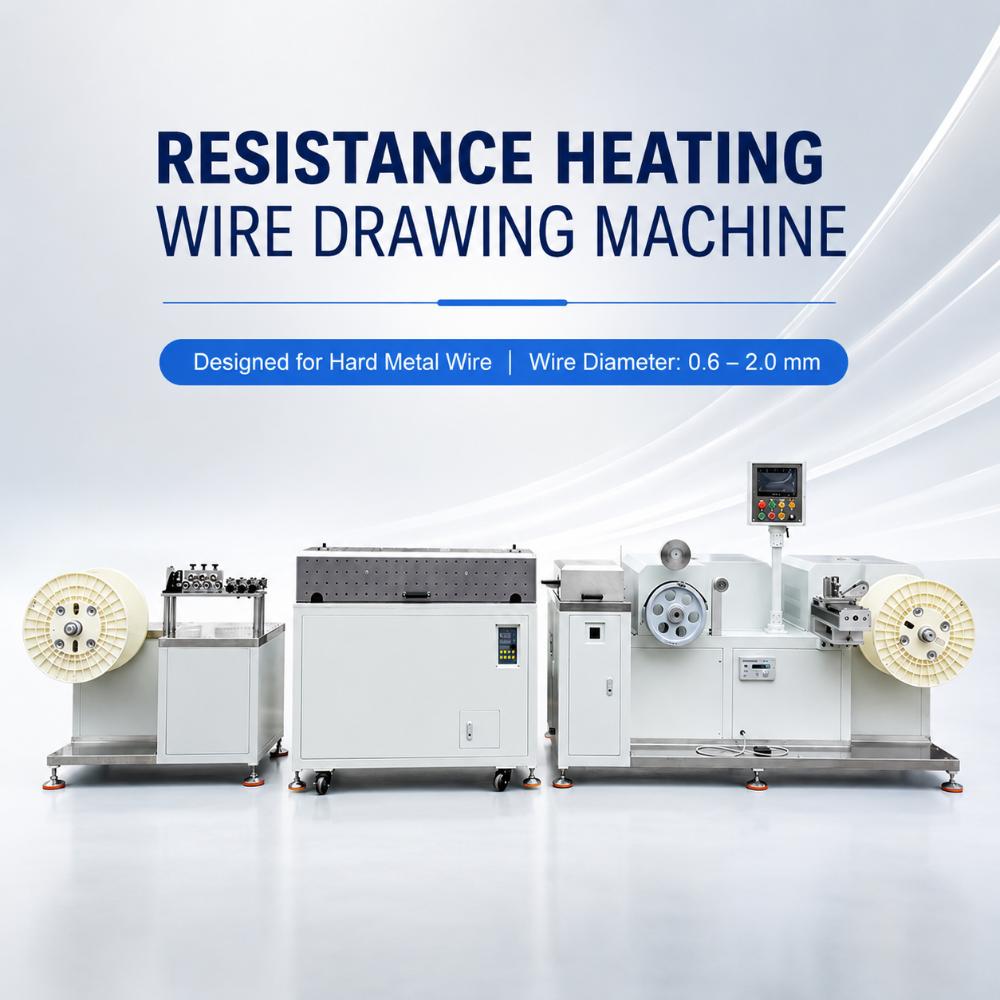

Heated Wire Drawing Machine for Hard, Brittle & Difficult-to-Draw Alloys

The JUYI Online Heating Wire Drawing Machine is a specialized heated wire drawing machine designed for drawing hard, brittle, and difficult-to-deform metal materials that are challenging to process through conventional cold wire drawing.

By integrating an online heating system directly into the wire drawing process, the machine heats the metal wire to a suitable processing temperature before or during drawing. This improves material ductility, reduces drawing resistance, lowers the risk of cracking and wire breakage, and enables more stable diameter reduction for demanding alloy materials.

The online heating wire drawing process is particularly suitable for materials such as aluminum alloys, magnesium alloys, gold-tin (Au-Sn) alloys, nickel alloys, silver alloys, and other hard or brittle metal materials.

Compared with conventional cold wire drawing, heated drawing provides a more controlled forming environment for materials with limited room-temperature ductility. It can help manufacturers achieve better production stability, higher drawing efficiency, and improved wire quality.

What Is Online Heated Wire Drawing?

Online heated wire drawing is a specialized metal forming process that combines controlled heating with conventional wire drawing.

In a conventional wire drawing process, metal wire is pulled through a drawing die to reduce its diameter and increase its length. However, some materials are too hard, brittle, or insufficiently ductile to withstand significant cold deformation.

The online heating process addresses this challenge by heating the wire immediately before or during drawing.

Typical Process

Metal Rod / Wire → Online Heating → Heated Wire Drawing → Cooling → Take-Up

The controlled heating increases the material’s ability to undergo plastic deformation, allowing difficult-to-draw materials to pass through the drawing die more smoothly.

This makes heated wire drawing an effective solution for specialty alloys and materials where conventional cold drawing may result in:

• Wire cracking
• Surface defects
• Frequent wire breakage
• Excessive drawing force
• Limited reduction per pass
• Unstable production
• Excessive work hardening

Key Advantages of JUYI Online Heating Wire Drawing Machine

1. Online Heating for Difficult-to-Draw Metals

The machine integrates heating into the wire drawing production line, eliminating the need to heat the entire material batch separately before drawing.

The wire can be heated continuously as it enters the drawing process, creating a more efficient and controllable production workflow.

This is particularly beneficial for hard and brittle alloys that require elevated temperatures to achieve sufficient ductility.

2. Designed for Hard & Brittle Metal Materials

The JUYI heated wire drawing machine is specifically designed for materials that are difficult to process using conventional cold drawing.

Recommended materials include:

• Aluminum alloys
• Magnesium alloys
• Gold-tin (Au-Sn) alloys
• Nickel alloys
• Silver alloys
• Specialty precious metal alloys
• Other hard, brittle, or difficult-to-draw non-ferrous alloys

Material suitability depends on the alloy composition, initial wire diameter, target diameter, hardness, required reduction, and heating temperature.

3. Reduced Drawing Resistance

Heating the wire before drawing can reduce deformation resistance and make the material easier to pass through the drawing die.

This can help reduce:

• Drawing force
• Mechanical load
• Wire stress
• Die stress
• Risk of wire breakage

For difficult materials, this can significantly improve process stability compared with conventional room-temperature wire drawing.

4. Improved Material Ductility

Some alloys have limited ductility at room temperature.

By applying controlled heat during the drawing process, the material can become more deformable, allowing greater deformation without excessive cracking or fracture.

This makes heated wire drawing particularly valuable for brittle alloys and specialty metal materials.

5. More Stable Multi-Pass Drawing

For materials requiring significant diameter reduction, wire drawing is normally performed through multiple passes.

Online heating can help maintain better material ductility between drawing stages, making it easier to achieve the desired final diameter.

A typical process can be:

Heating → Drawing Pass 1 → Reheating → Drawing Pass 2 → Reheating → Drawing Pass 3 → Final Wire

The exact number of drawing passes and heating conditions should be determined according to the material and target wire specification.

6. Continuous Production

The online heating system is integrated directly into the drawing line, allowing heating and drawing to take place continuously.

This can improve production efficiency by reducing separate heating operations and simplifying material handling.

It is particularly suitable for manufacturers looking for:

• Continuous wire production
• Stable drawing performance
• Reduced manual handling
• Improved process consistency
• Higher production efficiency

7. Controlled Heating Process

Precise temperature control is essential when drawing specialty alloys.

Different materials require different heating conditions. Excessive heating can affect material properties, surface quality, or dimensional stability, while insufficient heating may not provide enough ductility.

The JUYI system provides controlled online heating so that the process can be optimized according to:

• Alloy composition
• Wire diameter
• Drawing speed
• Reduction ratio
• Target wire diameter
• Material deformation characteristics

Applicable Metals

The JUYI Online Heating Wire Drawing Machine is particularly suitable for the following materials.

Aluminum Alloy Wire

Aluminum alloy wire drawing can benefit from controlled heating when processing alloys with higher strength or limited cold-forming capability.

Potential applications include:

• Conductive wire
• Aerospace materials
• Automotive components
• Industrial alloy wire
• Specialty aluminum wire

The heated drawing process can help reduce drawing resistance and improve forming stability.

Magnesium Alloy Wire

Magnesium alloy wire drawing can be challenging because magnesium alloys generally have limited room-temperature ductility.

Online heating can improve deformation behavior and reduce the risk of cracking during wire drawing.

Potential applications include:

• Aerospace materials
• Lightweight structural components
• Automotive materials
• Medical and specialty alloys
• Research and development materials

The heating temperature must be carefully controlled according to the specific magnesium alloy.

Gold-Tin (Au-Sn) Alloy Wire

Gold-tin alloy wire drawing is an important specialty application for materials used in high-reliability electronics and advanced packaging.

Au-Sn alloys can be relatively hard and difficult to draw compared with softer precious metals.

Heated wire drawing can provide improved processability while helping manufacturers achieve customized wire dimensions.

Potential applications include:

• Hermetic sealing
• Semiconductor packaging
• Electronic packaging
• Optoelectronic components
• High-reliability electronic devices

Nickel Alloy Wire

Nickel alloy wire drawing is widely used in demanding industrial applications.

Nickel-based alloys can exhibit high strength, work hardening, and significant deformation resistance, making them challenging to process through conventional cold drawing.

Online heating can help reduce drawing resistance and improve drawing stability.

Potential applications include:

• Aerospace
• Energy
• Chemical processing
• High-temperature components
• Electrical heating elements
• Industrial equipment

Silver Alloy Wire

Silver alloy wire drawing is widely used in precious metal and electrical applications.

Although pure silver is relatively ductile, certain silver alloys can have significantly higher hardness and reduced ductility.

Controlled online heating can help improve the drawing behavior of selected silver alloys while maintaining the required wire dimensions.

Potential applications include:

• Jewelry
• Precious metal components
• Electrical contacts
• Conductive components
• Specialty silver wire

Application Fields

Precious Metal Wire Manufacturing

The JUYI heated wire drawing machine can be used for specialty precious metal alloys that are more difficult to draw than pure gold or silver.

Applications include:

• Gold alloy wire
• Silver alloy wire
• Au-Sn alloy wire
• Specialty precious metal wire
• Jewelry wire
• Electronic precious metal wire

The machine can be integrated with melting, casting, rolling, wire drawing, and precision forming equipment to create a complete precious metal processing line.

Semiconductor & Electronic Packaging

The Au-Sn alloy wire drawing process is particularly relevant to semiconductor and electronic packaging applications.

Gold-tin alloy is widely used as a high-reliability soldering and sealing material. Customized Au-Sn wire dimensions may be required for specific packaging and assembly applications.

JUYI provides heated wire drawing technology for manufacturers processing specialty Au-Sn alloy wire.

Aerospace Industry

The aerospace sector uses various high-performance alloys that combine high strength, heat resistance, and corrosion resistance.

Materials such as nickel alloys and selected aluminum and magnesium alloys may require controlled forming conditions.

Heated wire drawing for aerospace alloys can help manufacturers process difficult materials into customized wire dimensions for downstream applications.

Automotive Industry

Aluminum, magnesium, nickel, and other specialty alloys are increasingly used in automotive manufacturing.

Online heated wire drawing can support the production of specialty alloy wire for:

• Electrical components
• Lightweight structures
• Sensors
• Heating elements
• Precision components
• Specialty fasteners and formed parts

Electrical & Electronics Industry

Copper, silver alloys, nickel alloys, and specialty precious metal alloys are used in electrical and electronic components.

Applications may include:

• Electrical contacts
• Conductive wire
• Connector components
• Electronic components
• Resistance wire
• Precision conductive materials

Jewelry & Precious Metal Industry

The machine can also be used for jewelry manufacturers working with hard precious metal alloys.

Potential applications include:

• Gold alloy jewelry wire
• Silver alloy wire
• Platinum-group alloy wire
• Specialty decorative wire
• Precision jewelry components

The heated drawing process can provide greater flexibility when working with alloys that are difficult to draw at room temperature.

Online Heating vs. Conventional Cold Wire Drawing

Actual performance depends on alloy composition, material condition, heating temperature, drawing reduction, die design, and production speed.

Typical Production Workflow

A typical JUYI online heated wire drawing process can be configured as:

Raw Wire / Rod
↓
Wire Feeding
↓
Online Heating
↓
Precision Wire Drawing
↓
Cooling
↓
Additional Drawing Passes
↓
Final Diameter Control
↓
Precision Take-Up

For certain materials, intermediate heat treatment or additional heating stages may be incorporated according to the required reduction ratio and material characteristics.

Why Choose JUYI Online Heating Wire Drawing Technology?

The biggest advantage of heated wire drawing is that it combines thermal processing and mechanical deformation in one continuous manufacturing process.

For materials that are difficult to draw at room temperature, online heating can provide a more suitable deformation environment.

Key Benefits

• Online heating integrated with wire drawing
• Designed for hard and brittle metals
• Improved material ductility
• Reduced drawing resistance
• Reduced risk of cracking and wire breakage
• Better suitability for difficult-to-draw alloys
• Suitable for continuous production
• Improved multi-pass drawing capability
• Suitable for specialty alloy wire
• Flexible process temperature control
• Applicable to precious and non-ferrous metals
• Suitable for customized wire production

Customized Heated Wire Drawing Solutions

Different alloys require different heating and drawing conditions.

Before selecting a heated wire drawing machine, manufacturers should consider:

• Material and alloy composition
• Initial wire or rod diameter
• Target final diameter
• Material hardness
• Required reduction ratio
• Drawing speed
• Heating temperature
• Required dimensional tolerance
• Surface quality
• Production capacity

JUYI can evaluate these parameters and develop a customized online heated wire drawing solution according to the customer’s material and production requirements.

For particularly difficult materials such as magnesium alloys, nickel alloys, Au-Sn alloys, and selected silver alloys, process testing is recommended to determine the optimal combination of heating temperature, drawing speed, die configuration, and reduction per pass.

Conclusion

The JUYI Online Heating Wire Drawing Machine provides a specialized solution for manufacturers processing hard, brittle, and difficult-to-draw metal materials.

By integrating controlled heating directly into the wire drawing process, the system helps improve material ductility, reduce drawing resistance, minimize cracking and wire breakage, and achieve more stable wire production.

It is particularly suitable for aluminum alloy wire drawing, magnesium alloy wire drawing, Au-Sn alloy wire drawing, nickel alloy wire drawing, silver alloy wire drawing, and other specialty metal wire applications.

From online heating to precision wire drawing, JUYI provides integrated equipment solutions for advanced metal forming, specialty alloy processing, precious metal manufacturing, electronics, aerospace, automotive, and other demanding industries.
